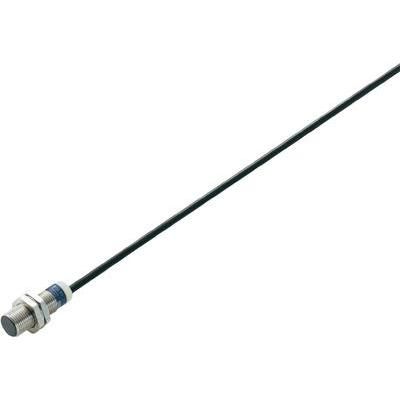

The GX-MK12A-P is an inductive proximity sensor with a sensing method of inductive sensing. It has a switching current of 10mA and a response frequency of 2.5kHz. The sensor operates within a supply voltage range of 12V to 24V and has a maximum operating temperature of 70°C. It is rated for IP68 and has a termination type of cable leads.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Panasonic GX-MK12A-P datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Panasonic GX-MK12A-P technical specifications.
| Body Material | Brass |
| Contact Type | 1 maker |
| Dielectric Material | NICKEL PLATED |
| Length | 55mm |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -25°C |
| Max Supply Voltage (DC) | 24V |
| Min Supply Voltage (DC) | 12V |
| Mount | Flush |
| Operating Supply Voltage | 24V |
| Ratings | IP68 |
| Reach SVHC Compliant | No |
| Response Frequency | 2.5kHz |
| RoHS Compliant | No |
| Sensing Method | Inductive |
| Series | GX-M |
| Shielding | Unshielded |
| Switching Current | 10mA |
| Termination | Cable Leads |
| RoHS | Not Compliant |
