General purpose electromechanical relay featuring DPST contact configuration and momentary action. Coil operates at 12VDC with 160mA current and 1.92W power consumption. Contact rating is 25A at 30VDC and 277VAC, with tin/silver contact material. Chassis mount design with quick connect termination, operating from -50°C to 55°C.
MountingChassis Mount, Flanges
Power1.92W
Quick Jump:
Technical Specifications
Panasonic HE2AN-Q-DC12V technical specifications.
General
| Coil Current | 160mA |
| Coil Resistance | 75R |
| Coil Type | Non-Latching |
| Coil Voltage (DC) | 12V |
| Contact Current Rating | 25A |
| Contact Material | Tin, Silver |
| Depth | 33mm |
| Height | 35mm |
| Lead Free | Lead Free |
| Length | 60mm |
| Max Current Rating | 25A |
| Max Operating Temperature | 55°C |
| Min Operating Temperature | -50°C |
| Max Voltage Rating (AC) | 277V |
| Max Voltage Rating (DC) | 30V |
| Mount | Chassis Mount, Flanges |
| Operate Time | 30ms |
| Package Quantity | 20 |
| Packaging | Bulk |
| Power Consumption | 1.92W |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| Relay Type | General Purpose |
| Release Time | 10ms |
| RoHS Compliant | Yes |
| Series | HE |
| Termination | Quick Connect |
| Throw Configuration | DPST |
| Voltage Rating (AC) | 277V |
| DC Rated Voltage | 30V |
| Weight | 90g |
| Width | 33mm |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic HE2AN-Q-DC12V Datasheet
Download the complete datasheet for Panasonic HE2AN-Q-DC12V to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

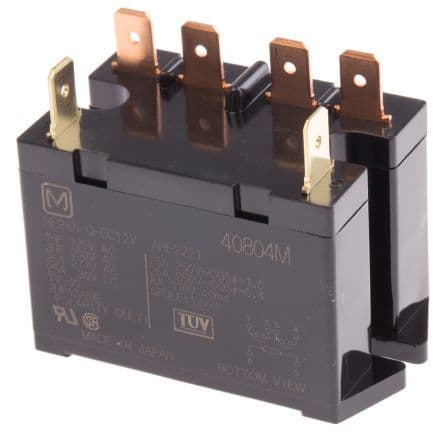

Product Images
