General purpose electromechanical relay featuring a 12VDC coil with 360mW power consumption and 30mA coil current. Offers SPST contact configuration with a 5A contact current rating and 100VDC contact voltage rating. Contact material is Tin/Silver, with a 10A maximum current rating and 250VAC/100VDC voltage rating. Through-hole mounting with PC pin termination, operating within a -40°C to 70°C temperature range. RoHS compliant with a 10ms operate and release time.
MountingThrough Hole, PCB
Power360mW
Quick Jump:
Technical Specifications
Panasonic JS1A-12V-F technical specifications.
General
Coil Current
30mA
Coil Power
360mW
Coil Resistance
400R
Coil Type
Non-Latching
Coil Voltage (DC)
12V
Contact Current Rating
10A
Contact Material
Tin, Silver
Depth
16mm
Height
16mm
Lead Free
Lead Free
Length
22mm
Life (Hours)
50000Hour
Max Current Rating
10A
Max Operating Temperature
70°C
Min Operating Temperature
-40°C
Max Voltage Rating (AC)
250V
Max Voltage Rating (DC)
100V
Mount
Through Hole, PCB
Operate Time
10ms
Package Quantity
100
Packaging
Bulk
Power Consumption
360mW
Radiation Hardening
No
Reach SVHC Compliant
Unknown
Relay Type
General Purpose
Release Time
10ms
RoHS Compliant
Yes
Series
JS
Termination
PC Pin
Throw Configuration
SPST
Voltage Rating (AC)
250V
DC Rated Voltage
100V
Weight
12g
Width
22mm
Compliance
RoHS
Compliant
Datasheet
Panasonic JS1A-12V-F Datasheet
Download the complete datasheet for Panasonic JS1A-12V-F to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

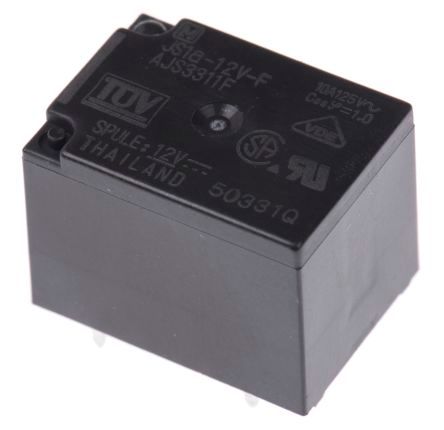

Product Images
