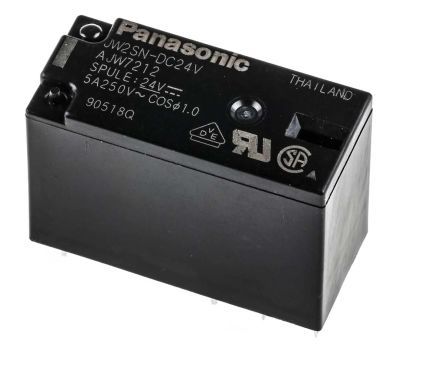

DPDT General Purpose Electromechanical Relay with 5A contact rating and 30VDC/250VAC switching capability. Features a 24VDC coil voltage, 22mA coil current, and 530mW coil power consumption. Through-hole mounting with PC pin termination. Operates within a -40°C to 60°C temperature range, with 15ms operate time and 5ms release time. RoHS compliant and UL, CSA, VDE, TUV approved.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Panasonic JW2SN-DC24V datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Panasonic JW2SN-DC24V technical specifications.
| Application(s) | POWER |
| Approvals | UL, CSA, VDE, TUV |
| Package/Case | DIP |
| Coil Current | 22mA |
| Coil Resistance | 1.1kR |
| Coil Type | Non-Latching |
| Coil Voltage (DC) | 24V |
| Contact Current Rating | 5A |
| Contact Material | Silver, Tin |
| Contact Plating | Silver |
| Current Rating | 5A |
| Depth | 12.8mm |
| Height | 20mm |
| Lead Free | Lead Free |
| Length | 28.6mm |
| Max Current Rating | 5A |
| Max Operating Temperature | 60°C |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (AC) | 250V |
| Max Voltage Rating (DC) | 30V |
| Mount | Through Hole, PCB |
| Number of Contacts | 2 |
| Operate Time | 15ms |
| Package Quantity | 100 |
| Packaging | Bulk |
| Power Consumption | 530mW |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| Relay Function | DPDT |
| Relay Type | General Purpose |
| Release Time | 5ms |
| RoHS Compliant | Yes |
| Series | JW |
| Switching Current | 5A |
| Switching Voltage | 30V |
| Termination | PC Pin |
| Throw Configuration | DPDT |
| Type | Electromechanical |
| Voltage Rating (AC) | 250V |
| DC Rated Voltage | 30V |
| Weight | 13g |
| RoHS | Compliant |
