Multifunction timer with a 240VAC coil voltage and 240VAC maximum supply voltage. Features a 3A contact current rating and SPDT throw configuration. Offers panel, DIN rail, and flush mounting options with screw termination. Display type is LCD, and the unit boasts an IP66 rating.
MountingPanel, DIN Rail, Flush
Quick Jump:
Technical Specifications
Panasonic LT4H-AC240VS technical specifications.
General
| Coil Voltage (AC) | 240V |
| Contact Current Rating | 3A |
| Display Type | LCD |
| Max Supply Voltage (AC) | 240V |
| Mount | Panel, DIN Rail, Flush |
| Operating Supply Voltage | 240V |
| Package Quantity | 1 |
| Packaging | Bulk |
| Ratings | IP66 |
| Reach SVHC Compliant | No |
| Series | LT4H |
| Termination | Screw |
| Throw Configuration | SPDT |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic LT4H-AC240VS Datasheet
Download the complete datasheet for Panasonic LT4H-AC240VS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

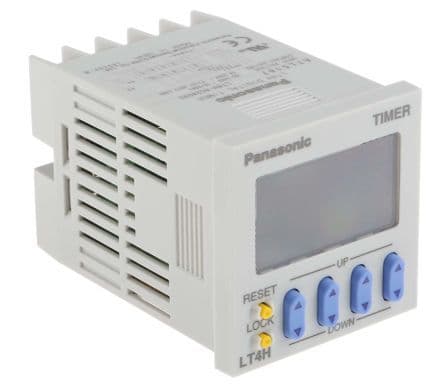

Product Images
