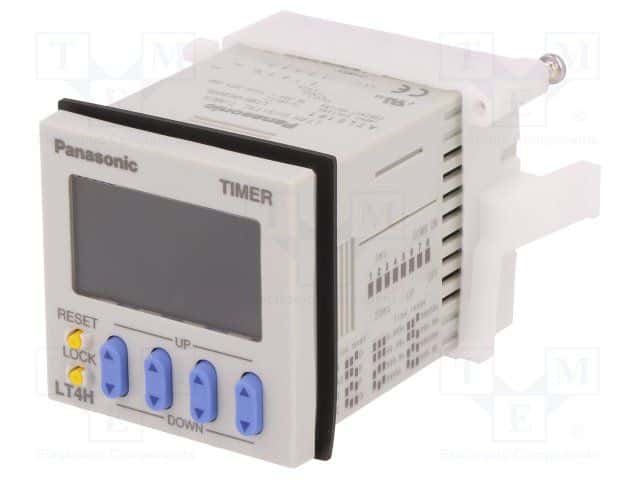

1 Form C SPDT time delay relay with LCD display, rated for 3A contact current. Features a 24VDC nominal input voltage, operating within a 12VDC to 24VDC supply voltage range. Panel or DIN rail mountable with screw termination. Operates from -10°C to 55°C and has a 24V AC voltage rating.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Panasonic LT4H-DC24VS datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Contact Current Rating | 3A |
| Display Type | LCD |
| Height | 48mm |
| Lead Free | Lead Free |
| Max Operating Temperature | 55°C |
| Min Operating Temperature | -10°C |
| Max Supply Voltage (DC) | 24V |
| Min Supply Voltage (DC) | 12V |
| Max Voltage Rating (AC) | 24V |
| Mount | Panel, DIN Rail |
| Nominal Input Voltage | 24V |
| Number of Poles | 1 |
| Operating Supply Voltage | 24V |
| Package Quantity | 1 |
| Packaging | Bulk |
| Reach SVHC Compliant | No |
| Series | LT4H |
| Termination | Screw |
| Throw Configuration | SPDT |
| Voltage Rating (AC) | 24V |
| DC Rated Voltage | 30V |
| Width | 48mm |
| RoHS | Compliant |
