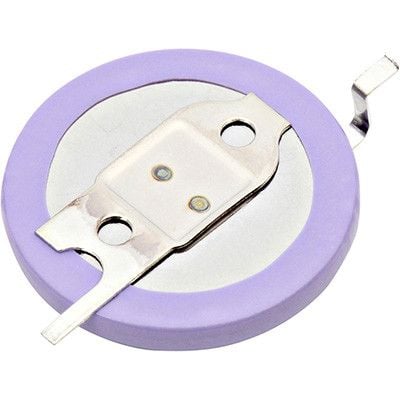

Rechargeable Lithium Coin Battery, 3V, 17mAh capacity. Features LITHIUM secondary battery chemistry with a 12mm diameter and 2mm height. Designed for surface mount (SMD/SMT) applications, operating within a temperature range of -20°C to 60°C. This lead-free, RoHS compliant component offers a 3V output voltage.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Panasonic ML-1220/F1AN datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Battery Chemistry | LITHIUM |
| Battery Type | SECONDARY |
| Capacity | 17mAh |
| Chemistry/Technology | Lithium |
| Depth | 12.5mm |
| Diameter | 12mm |
| Height | 2mm |
| Lead Free | Lead Free |
| Length | 12.5mm |
| Max Operating Temperature | 60°C |
| Min Operating Temperature | -20°C |
| Mount | Surface Mount |
| Number of Cells | 1 |
| Output Voltage | 3V |
| Package Quantity | 250 |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | ML1220 |
| Termination | SMD/SMT |
| Voltage | 3V |
| Voltage Rating | 3V |
| DC Rated Voltage | 3V |
| Weight | 0.8g |
| RoHS | Compliant |
