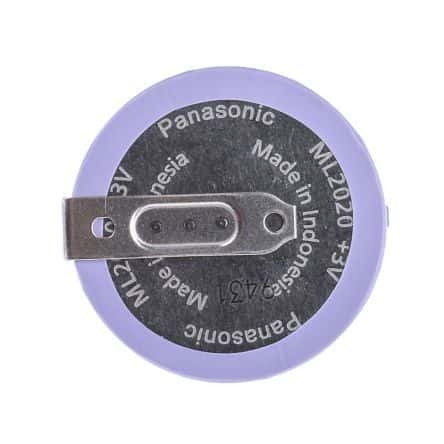

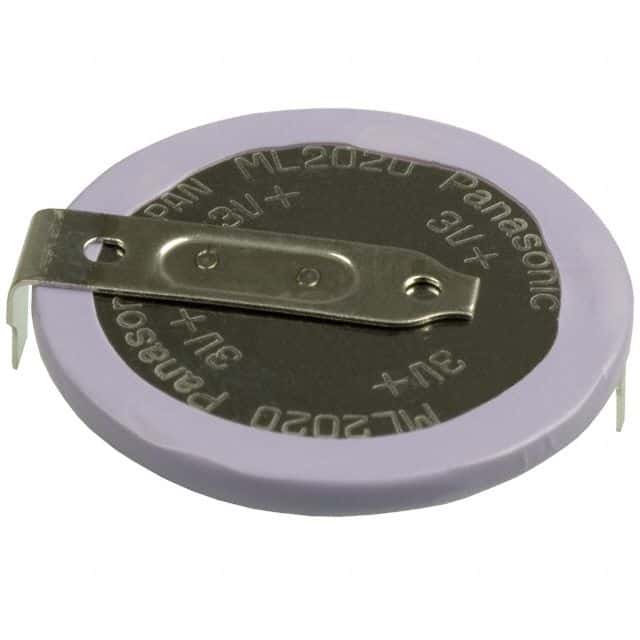

3V LITHIUM MANGANESE secondary battery, 45mAh capacity, 20mm diameter, 2mm height, and 20mm depth. Features a 3V output voltage, operating temperature range of -20°C to 60°C, and lead-free, RoHS compliant construction. This single-cell battery utilizes through-hole termination and is designed for horizontal orientation.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Panasonic ML-2020/H1CN datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Panasonic ML-2020/H1CN technical specifications.
| Battery Chemistry | LITHIUM MANGANESE |
| Battery Size | 2020 |
| Battery Type | PRIMARY |
| Capacity | 45mAh |
| Chemistry/Technology | Lithium |
| Depth | 20mm |
| Diameter | 20mm |
| Height | 2mm |
| Lead Free | Lead Free |
| Length | 20mm |
| Max Operating Temperature | 60°C |
| Min Operating Temperature | -20°C |
| Number of Cells | 1 |
| Orientation | Horizontal |
| Output Voltage | 3V |
| Package Quantity | 360 |
| RoHS Compliant | Yes |
| Series | ML |
| Termination | Through Hole |
| Voltage | 3V |
| Voltage Rating | 3V |
| Weight | 2.2g |
| RoHS | Compliant |
