Technical Specifications

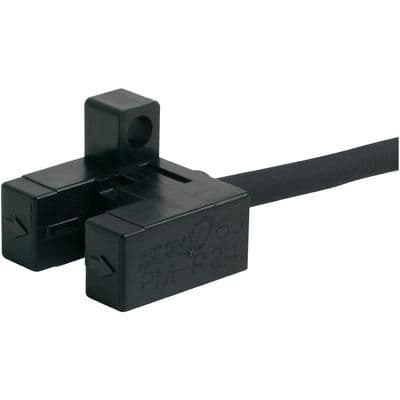

Panasonic PM-R24P technical specifications.
General
Collector Emitter Breakdown Voltage
30V
Height
10.5mm
Lead Free
Lead Free
Length
13.4mm
Max Collector Current
15mA
Max Operating Temperature
55°C
Min Operating Temperature
-25°C
Mount
Chassis Mount
Output Configuration
Dark-On
Packaging
Bulk
Ratings
IP40
Response Time
20us
RoHS Compliant
No
Sensing Method
Optical
Series
PM-24
Width
12mm
Compliance
RoHS
Not Compliant
Datasheet
Panasonic PM-R24P Datasheet
Download the complete datasheet for Panasonic PM-R24P to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
