General purpose power relay featuring a 12VDC coil with 200mW power consumption and 720 Ohm resistance. This 4PST-NO relay offers a 4A contact current rating with Silver, Cadmium, Gold contact material and a maximum AC voltage rating of 250V. Designed for through-hole PCB mounting with PC pin termination, it operates within a temperature range of -55°C to 65°C and boasts UL and CSA approvals.
PackageDIP
Current Rating4A
MountingThrough Hole, PCB
Inductance370mH
Quick Jump:
Technical Specifications
Panasonic S4EB-12V technical specifications.
General
Approvals
UL, CSA
Package/Case
DIP
Coil Current
16.7mA
Coil Power
200mW
Coil Resistance
720R
Coil Type
Non-Latching
Coil Voltage (DC)
12V
Contact Current Rating
4A
Contact Material
Silver, Cadmium, Gold
Current Rating
4A
Depth
12mm
Height
10.5mm
Inductance
370mH
Lead Free
Lead Free
Length
28mm
Life (Hours)
2Hour
Max Operating Temperature
65°C
Min Operating Temperature
-55°C
Max Voltage Rating (AC)
250V
Max Voltage Rating (DC)
48V
Mount
Through Hole, PCB
Operate Time
15ms
Package Quantity
50
Packaging
Case
Power Consumption
200mW
Reach SVHC Compliant
Unknown
Relay Type
General Purpose
Release Time
10ms
RoHS Compliant
Yes
Series
S
Termination
PC Pin
Throw Configuration
4PST
Voltage Rating (AC)
250V
Weight
8g
Compliance
RoHS
Compliant
Datasheet
Panasonic S4EB-12V Datasheet
Download the complete datasheet for Panasonic S4EB-12V to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

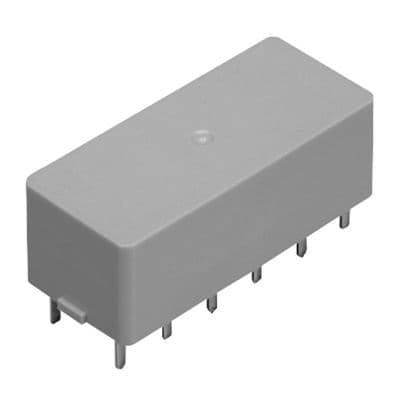

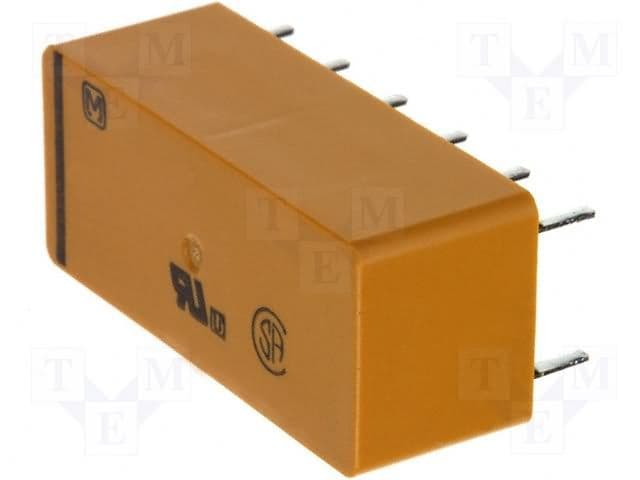

Product Images
