General purpose safety relay featuring a 12VDC coil with 500mW power consumption and 41.7mA coil current. Offers 4PST (Double Pole Single Throw) contact configuration with a 6A contact current rating and 30VDC maximum contact voltage. Contact material includes Tin, Silver, and Gold with gold plating. This through-hole mount component has a 17ms operate time and 7ms release time, operating within a -40°C to 70°C temperature range.
MountingThrough Hole
Power500mW
Quick Jump:
Technical Specifications

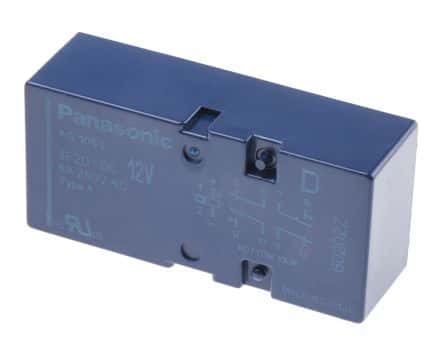

Panasonic SF2D-DC12V technical specifications.
General
| Coil Current | 41.7mA |
| Coil Power | 500mW |
| Coil Resistance | 288R |
| Coil Voltage (DC) | 12V |
| Contact Current Rating | 6A |
| Contact Material | Tin, Silver, Gold |
| Contact Plating | Gold |
| Height | 16mm |
| Lead Free | Lead Free |
| Length | 53.3mm |
| Max Current Rating | 6A |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (AC) | 440V |
| Max Voltage Rating (DC) | 30V |
| Mount | Through Hole |
| Number of Poles | 2 |
| Operate Time | 17ms |
| Package Quantity | 20 |
| Packaging | Bulk |
| Pitch | 2.54mm |
| Power Consumption | 500mW |
| Reach SVHC Compliant | No |
| Release Time | 7ms |
| RoHS Compliant | Yes |
| Series | SF2D |
| Switching Current | 6A |
| Termination | PC Pin |
| Throw Configuration | 4PST, DPST |
| Weight | 38g |
| Width | 25mm |
Compliance
| RoHS | Compliant |
