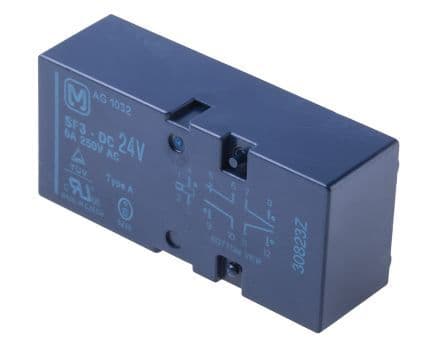

The SF3-DC24V is a 24V non-latching relay with a coil current rating of 20.8mA and a power rating of 500mW. It has a contact current rating of 6A and a maximum voltage rating of 250V. The relay is designed for through hole mount and has an operating temperature range of -40°C to 70°C.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Panasonic SF3-DC24V datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Panasonic SF3-DC24V technical specifications.
| Coil Current | 20.8mA |
| Coil Power | 500mW |
| Coil Resistance | 1.152kR |
| Coil Type | Non-Latching |
| Coil Voltage (DC) | 24V |
| Contact Current Rating | 6A |
| Contact Material | Tin, Gold, Silver |
| Lead Free | Lead Free |
| Max Current Rating | 6A |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (AC) | 250V |
| Max Voltage Rating (DC) | 24V |
| Mount | Through Hole |
| Operate Time | 30ms |
| Package Quantity | 20 |
| Packaging | Bulk |
| Relay Type | Safety RELAY |
| Release Time | 15ms |
| RoHS Compliant | No |
| Series | SF3 |
| Termination | PC Pin |
| Throw Configuration | 4PST, 3PST, SPST |
| RoHS | Not Compliant |
