DPDT latching telecom relay with a 12VDC coil voltage and 100mW power consumption. Features a 1A contact current rating, 110VDC/125VAC contact voltage rating, and gold-plated silver contact material. Operates within a -40°C to 70°C temperature range with 3ms operate and release times. Through-hole mounting with PC pin termination.
PackageDIP
MountingThrough Hole
Power100mW
Quick Jump:
Technical Specifications
Panasonic TQ2-L-12V technical specifications.
General
Package/Case
DIP
Coil Current
8.3mA
Coil Resistance
1.44kR
Coil Type
Latching, Single Coil
Coil Voltage (DC)
12V
Contact Current Rating
1A
Contact Material
Gold, Silver
Contact Plating
Gold
Depth
9mm
Insertion Loss
0.6dB
Lead Free
Lead Free
Length
14mm
Max Current Rating
1A
Max Operating Temperature
70°C
Min Operating Temperature
-40°C
Max Voltage Rating (AC)
125V
Max Voltage Rating (DC)
110V
Mount
Through Hole
Operate Time
3ms
Package Quantity
50
Packaging
Rail/Tube
Power Consumption
100mW
Relay Type
Telecom
Release Time
3ms
RoHS Compliant
Yes
Series
TQ
Termination
PC Pin
Throw Configuration
DPDT
Voltage Rating (AC)
125V
Weight
1.5g
Compliance
RoHS
Compliant
Datasheet
Panasonic TQ2-L-12V Datasheet
Download the complete datasheet for Panasonic TQ2-L-12V to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

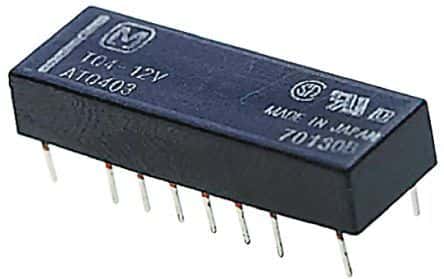

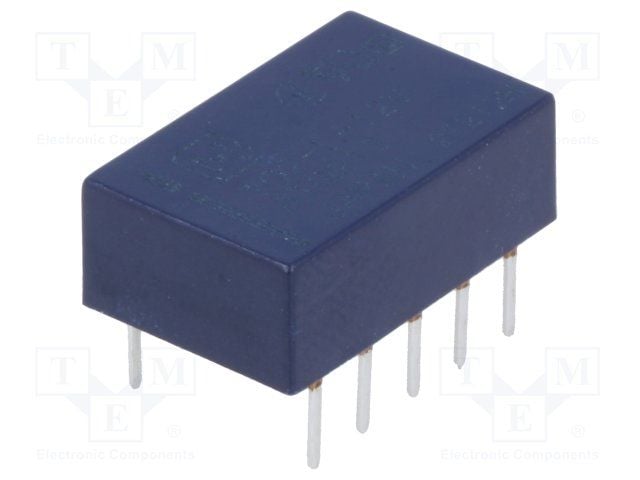

Product Images
