DPDT latching power/signal relay with a 24VDC coil voltage and 150mW coil power consumption. Features a 1A contact current rating with gold/silver contact material, capable of switching up to 110VDC or 125VAC. Operates within a -40°C to 70°C temperature range, with 3ms operate and release times. Through-hole mounting with PC pin termination, packaged in a DIP case.
PackageDIP
MountingThrough Hole
Power150mW
Quick Jump:
Technical Specifications
Panasonic TQ2-L-24V technical specifications.
General
Package/Case
DIP
Coil Current
6.3mA
Coil Resistance
3.84kR
Coil Type
Latching, Single Coil
Coil Voltage (DC)
24V
Contact Current Rating
1A
Contact Material
Gold, Silver
Insertion Loss
0.6dB
Lead Free
Lead Free
Max Current Rating
1A
Max Operating Temperature
70°C
Min Operating Temperature
-40°C
Max Voltage Rating (AC)
125V
Max Voltage Rating (DC)
110V
Mount
Through Hole
Operate Time
3ms
Package Quantity
50
Packaging
Rail/Tube
Power Consumption
150mW
Relay Type
Telecom
Release Time
3ms
RoHS Compliant
Yes
Series
TQ
Termination
PC Pin
Throw Configuration
DPDT
Weight
1.5g
Compliance
RoHS
Compliant
Datasheet
Panasonic TQ2-L-24V Datasheet
Download the complete datasheet for Panasonic TQ2-L-24V to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

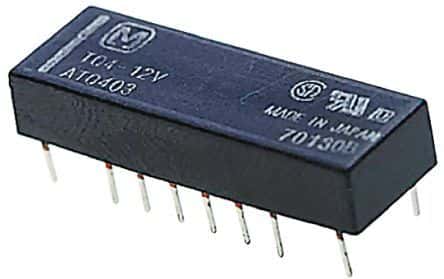

Product Images
