DPDT general purpose relay featuring a 5VDC coil with 140mW power consumption and 28.1mA coil current. Contact ratings include 2A at 220VDC and 125VAC, with gold and silver contact material. Surface mount termination with gull wing leads, operating over a -40°C to 85°C temperature range. 4ms operate and release times, lead-free and RoHS compliant.
MountingSurface Mount
Power140mW
Quick Jump:
Technical Specifications
Panasonic TQ2SA-5V-X technical specifications.
General
| Coil Current | 28.1mA |
| Coil Resistance | 178R |
| Coil Type | Non-Latching |
| Coil Voltage (DC) | 5V |
| Contact Current Rating | 2A |
| Contact Material | Gold, Silver |
| Depth | 11.5mm |
| Insertion Loss | 0.8dB |
| Lead Free | Lead Free |
| Length | 14mm |
| Max Current Rating | 2A |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (AC) | 125V |
| Max Voltage Rating (DC) | 220V |
| Mount | Surface Mount |
| Operate Time | 4ms |
| Package Quantity | 500 |
| Packaging | Tape and Reel |
| Power Consumption | 140mW |
| Relay Type | Telecom |
| Release Time | 4ms |
| RoHS Compliant | Yes |
| Series | TQ-SMD |
| Termination | Gull Wing |
| Throw Configuration | DPDT |
| Voltage Rating (AC) | 125V |
| Weight | 2g |
| Width | 9mm |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic TQ2SA-5V-X Datasheet
Download the complete datasheet for Panasonic TQ2SA-5V-X to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

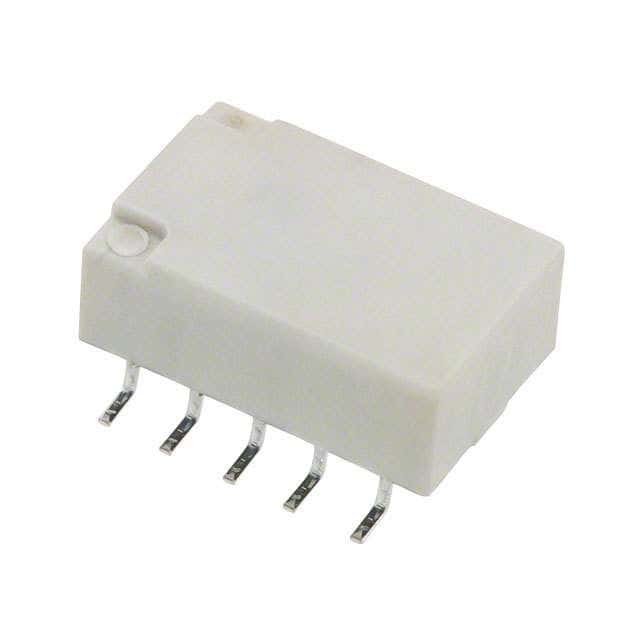

Product Images
