DPDT latching power/signal relay with a 3VDC coil voltage and 140mW coil power. Features a 2A contact current rating, 220VDC and 125VAC contact voltage ratings, and gold/silver contact material. This surface mount component offers 4ms operate and release times, operating across a -40°C to 85°C temperature range. Packaged on tape and reel, it is RoHS compliant.
MountingSurface Mount
Power140mW
Quick Jump:
Technical Specifications
Panasonic TQ2SA-L2-3V-Z technical specifications.
General
Coil Current
46.7mA
Coil Power
140mW
Coil Resistance
64.3R
Coil Type
Latching, Dual Coil
Coil Voltage (DC)
3V
Contact Current Rating
2A
Contact Material
Gold, Silver
Height
4.9mm
Insertion Loss
0.8dB
Lead Free
Lead Free
Length
14mm
Max Current Rating
2A
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Voltage Rating (AC)
125V
Max Voltage Rating (DC)
220V
Mount
Surface Mount
Operate Time
4ms
Package Quantity
500
Packaging
Tape and Reel
Power Consumption
140mW
Reach SVHC Compliant
No
Relay Type
Telecom
Release Time
4ms
RoHS Compliant
Yes
Series
TQ-SMD
Termination
Gull Wing
Throw Configuration
DPDT
Weight
2g
Width
14mm
Compliance
RoHS
Compliant
Datasheet
Panasonic TQ2SA-L2-3V-Z Datasheet
Download the complete datasheet for Panasonic TQ2SA-L2-3V-Z to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

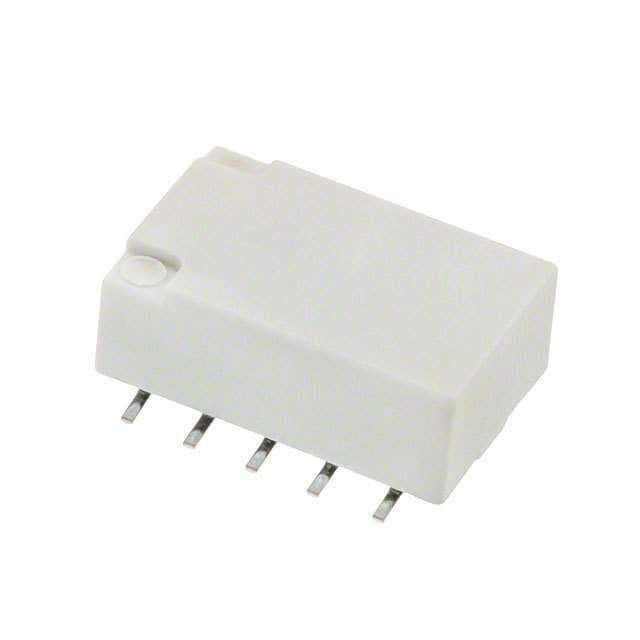

Product Images
