Latching electromechanical relay featuring a 5VDC coil voltage and 28.1mA coil current, consuming 140mW. This DPDT relay offers a 2A contact current rating and a 125VAC/220VDC contact voltage rating. Designed for surface mount applications with gull wing termination, it operates within a -40°C to 85°C temperature range.
MountingSurface Mount
Power140mW
Quick Jump:
Technical Specifications
Panasonic TQ2SA-L2-5V-Z technical specifications.
General
Coil Current
28.1mA
Coil Resistance
178R
Coil Type
Latching, Dual Coil
Coil Voltage (DC)
5V
Contact Current Rating
2A
Contact Material
Gold, Silver
Depth
11.5mm
Insertion Loss
0.8dB
Lead Free
Lead Free
Length
14mm
Max Current Rating
2A
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Voltage Rating (AC)
125V
Max Voltage Rating (DC)
220V
Mount
Surface Mount
Operate Time
4ms
Package Quantity
500
Packaging
Tape and Reel
Power Consumption
140mW
Radiation Hardening
No
Reach SVHC Compliant
Unknown
Relay Type
Telecom
Release Time
4ms
RoHS Compliant
Yes
Series
TQ-SMD
Termination
Gull Wing
Throw Configuration
DPDT
Voltage Rating (AC)
125V
DC Rated Voltage
220V
Weight
2g
Compliance
RoHS
Compliant
Datasheet
Panasonic TQ2SA-L2-5V-Z Datasheet
Download the complete datasheet for Panasonic TQ2SA-L2-5V-Z to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

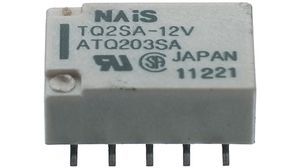

Product Images
