Technical Specifications
Panasonic TX2-LT-12V-TH technical specifications.
General
| Coil Current | 11.7mA |
| Coil Resistance | 1.03kR |
| Coil Type | Latching, Dual Coil |
| Coil Voltage (DC) | 12V |
| Contact Current Rating | 2A |
| Contact Material | Gold, Silver |
| Lead Free | Lead Free |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Operate Time | 4ms |
| Package Quantity | 40 |
| Packaging | Rail/Tube |
| Power Consumption | 140mW |
| Relay Type | General Purpose |
| Release Time | 4ms |
| RoHS Compliant | Yes |
| Series | TX-TH |
| Termination | PC Pin |
| Throw Configuration | DPDT |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic TX2-LT-12V-TH Datasheet
Download the complete datasheet for Panasonic TX2-LT-12V-TH to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

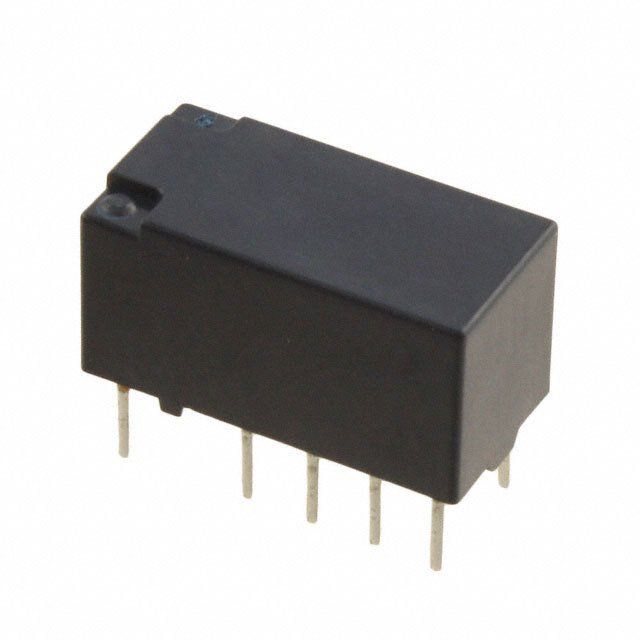

Product Images
