DPDT signal relay with a 5VDC coil voltage and 40mA coil current, featuring a 125 Ohm coil resistance. Offers a 2A contact current rating with gold and silver contact material. Operates within a -40°C to 85°C temperature range and has a 220VDC maximum voltage rating. Through-hole mounting with PC pin termination, measuring 15x7.4x8.2mm.
PackageDIP
MountingThrough Hole
Power200mW
Quick Jump:
Chat with Datasheet
Sponsored by
Sign in to ask questions about the Panasonic TXD2-5V datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Technical Specifications
Panasonic TXD2-5V technical specifications.
General
| Package/Case | DIP |
| Coil Current | 40mA |
| Coil Resistance | 125R |
| Coil Type | Non-Latching |
| Coil Voltage (DC) | 5V |
| Contact Current Rating | 2A |
| Contact Material | Gold, Silver |
| Depth | 7.4mm |
| Insertion Loss | 0.8dB |
| Lead Free | Lead Free |
| Length | 15mm |
| Max Current Rating | 2A |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (DC) | 220V |
| Mount | Through Hole |
| Operate Time | 4ms |
| Package Quantity | 40 |
| Packaging | Rail/Tube |
| Power Consumption | 200mW |
| Radiation Hardening | No |
| Relay Type | General Purpose |
| Release Time | 4ms |
| RoHS Compliant | Yes |
| Series | TX-D |
| Termination | PC Pin |
| Throw Configuration | DPDT |
| DC Rated Voltage | 220V |
| Weight | 2g |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic TXD2-5V Datasheet
Download the complete datasheet for Panasonic TXD2-5V to view detailed technical specifications.
The embedded preview will load automatically when this section scrolls into view.

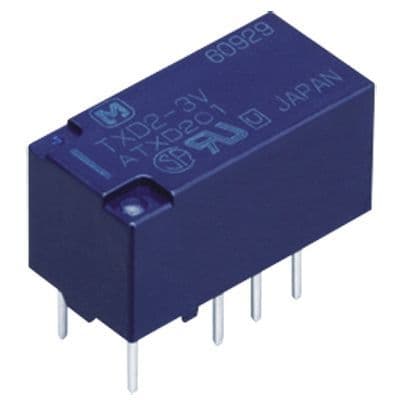

Product Images
