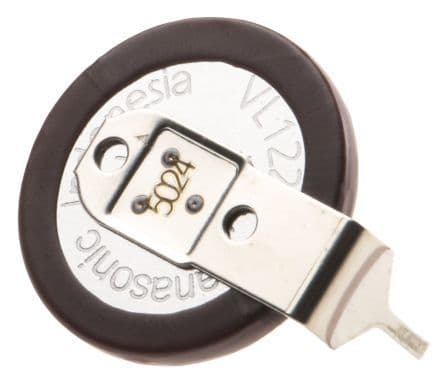

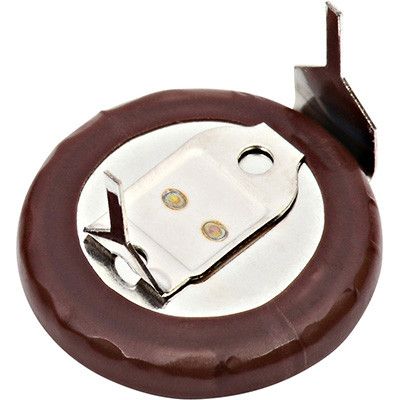

Rechargeable lithium coin battery, 3V output voltage, 7mAh capacity. Features a 12mm diameter and 2mm height, with through-hole mounting and PC pin termination. Operates across a -20°C to 60°C temperature range. Lead-free and RoHS compliant.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Panasonic VL-1220/HFN datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Panasonic VL-1220/HFN technical specifications.
| Battery Chemistry | LITHIUM |
| Battery Size | 1220 |
| Battery Type | SECONDARY |
| Capacity | 7mAh |
| Chemistry/Technology | Lithium |
| Depth | 12.5mm |
| Diameter | 12mm |
| Height | 2mm |
| Lead Free | Lead Free |
| Length | 13.5mm |
| Max Operating Temperature | 60°C |
| Min Operating Temperature | -20°C |
| Mount | Through Hole |
| Number of Cells | 1 |
| Orientation | Horizontal |
| Output Voltage | 3V |
| Outside Diameter | 12.5mm |
| Package Quantity | 720 |
| Reach SVHC Compliant | Yes |
| RoHS Compliant | Yes |
| Series | VL1220 |
| Termination | PC Pin |
| Voltage | 3V |
| Voltage Rating | 3V |
| Weight | 0.8g |
| Width | 12.5mm |
| RoHS | Compliant |
