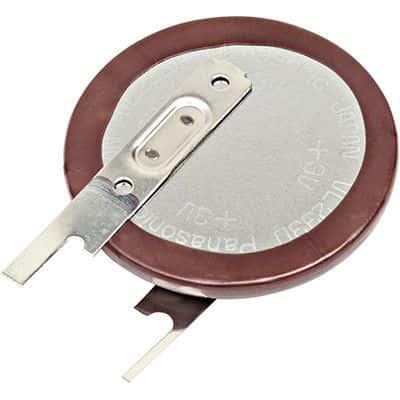

Rechargeable Lithium battery, 3V output voltage, 50mAh capacity. Features a 2330 battery size with a 23mm diameter and 3mm height. Operates within a temperature range of -20°C to 60°C. Designed for surface mount applications with through-hole termination.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Panasonic VL-2330/VCN datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Battery Chemistry | LITHIUM |
| Battery Size | 2330 |
| Battery Type | SECONDARY |
| Capacity | 50mAh |
| Chemistry/Technology | Lithium |
| Depth | 23mm |
| Diameter | 23mm |
| Height | 3mm |
| Length | 23mm |
| Max Operating Temperature | 60°C |
| Min Operating Temperature | -20°C |
| Mount | Surface Mount |
| Orientation | Vertical |
| Output Voltage | 3V |
| Outside Diameter | 23mm |
| Package Quantity | 400 |
| Packaging | Bulk |
| Reach SVHC Compliant | Yes |
| RoHS Compliant | No |
| Series | VL |
| Termination | Through Hole |
| Voltage | 3V |
| Voltage Rating | 3V |
| Weight | 3.5g |
| RoHS | Not Compliant |
Download the complete datasheet for Panasonic VL-2330/VCN to view detailed technical specifications.
