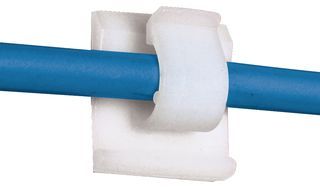

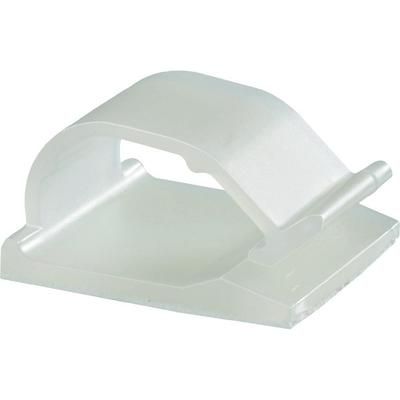

Adhesive-backed cord clip for cable management, featuring a 9.7mm inside diameter suitable for wire/cable diameters up to 0.38 inches. Constructed from durable Nylon 6/6 (PA66), this clip offers a natural, beige, or black color option and a UL94 V-2 flammability rating. It is halogen-free, lead-free, and RoHS compliant, with dimensions of 25.4mm length, 25.4mm width, and 9.6mm height. Mounting is achieved via a strong adhesive backing.
MountingAdhesive
Quick Jump:
Technical Specifications
Panduit ACC38-A-C technical specifications.
General
| Body Material | Nylon |
| Color | Natural, Beige, Black |
| Depth | 25.4mm |
| Flammability Rating | UL94 V-2 |
| Halogen Free | Halogen Free |
| Height | 9.6mm |
| Inside Diameter | 9.7mm |
| Lead Free | Lead Free |
| Length | 25.4mm |
| Material | Nylon, Polyamide, PA66 |
| Mount | Adhesive |
| Package Quantity | 100 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Weight | 8.16oz |
| Width | 25.4mm |
| Wire/Cable Diameter | 0.38inch |
Compliance
| RoHS | Compliant |
Datasheet
Panduit ACC38-A-C Datasheet
Download the complete datasheet for Panduit ACC38-A-C to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
Product Images
