PPI Broadband Capacitors are subjected to standard measurements (Capacitance, TCC, DWV), and extensive RF Characteristics testing. This guarantees every lot will meet or exceed expectations.
Temp Range-55 to +125°C
Capacitance0.1
Voltage Rating16WVDC
Quick Jump:
Technical Specifications

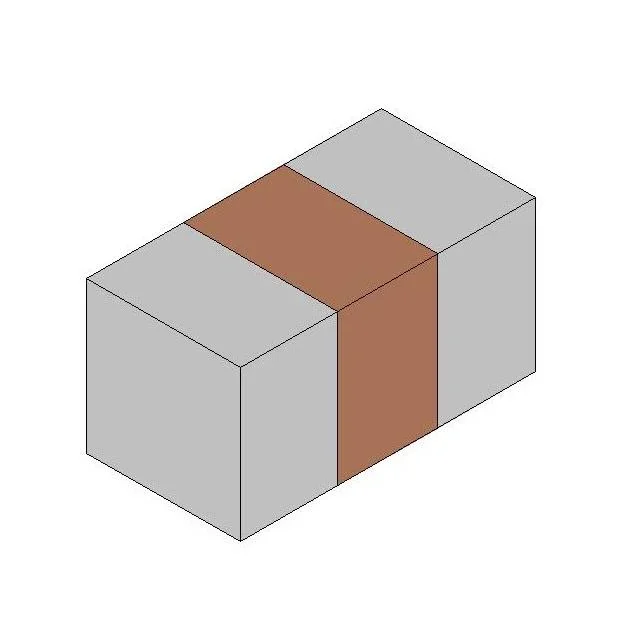

Passive Plus 0201BB104KW160 technical specifications.
General
Max Operating Temperature
125
Number of Terminals
2
Min Operating Temperature
-55
Capacitance
0.1
Capacitor Type
CERAMIC CAPACITOR
DC Rated Voltage
16
Typical Operating Frequency Range
16 kHz (-3dB point) to > 40 GHz
Insertion Loss
< 1dBtypical
Tape & Reel Quantity
15Kpcs/reel
Capacitance
100nF
Operating Temperature Range
-55 to +125°C
Temperature Coefficient of Capacitance (TCC)
±15%
Rated Voltage
16WVDC
Dielectric Withstanding Voltage (DWV)
250% of rated WVDC for 5 seconds
Part Number Case Size
0201(0.020" x 0.010")
Part Number Broadband Identifier
BB
Part Number Capacitance Value Code
104 (10 x 10^4 pF = 100nF)
Part Number Tolerance Code
K (±10%)
Part Number Voltage Code
160 (16V)
Termination Option W
Tin Plated over Nickel Barrier
Termination Option G
Gold Epoxy Mount Only
Termination Option L
Tin/Lead (90%Sn/10%Pb)
Length
0.023 in. ± 0.002 (0.58mm ± 0.06mm)
Width
0.012 in. ± 0.002 (0.30mm ±0.06mm)
Thickness Max
0.013 in. (0.33mm)
Gap Typical
0.008 in. (0.203 mm)
Compliance
RoHS
Yes
REACH
Compliant
Military Spec
False
Datasheet
Passive Plus 0201BB104KW160 Datasheet
Download the complete datasheet for Passive Plus 0201BB104KW160 to view detailed technical specifications.
