Pepperl+Fuchs
NBB5-18GM50-E2-V1
Inductive sensor 5 mm PNP, make contact Plug M12 10. . .30 VDC -25. . .+70 °C, NBB5-18GM50-E2-V1, Pepperl+Fuchs
MountingFlush
Quick Jump:
Technical Specifications
Pepperl+Fuchs NBB5-18GM50-E2-V1 technical specifications.
General
Approvals
CE, cULus
Body Material
Brass
Length
65mm
Max Operating Temperature
70°C
Min Operating Temperature
-40°C
Max Supply Voltage (DC)
30V
Min Supply Voltage (DC)
10V
Mount
Flush
Operating Supply Voltage
30V
Output Type
PNP
Ratings
IP67
Reach SVHC Compliant
No
Sensing Method
Inductive
Shielding
Unshielded
Switching Current
200mA
Termination
Connector
Compliance
RoHS
Compliant
Datasheet
Pepperl+Fuchs NBB5-18GM50-E2-V1 Datasheet
Download the complete datasheet for Pepperl+Fuchs NBB5-18GM50-E2-V1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

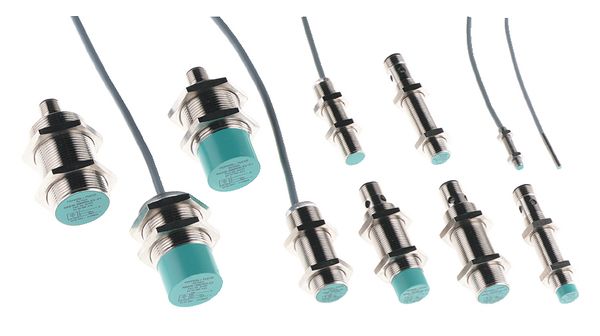

Product Images
