Technical Specifications
Pepperl+Fuchs NBN4-F29-A2 technical specifications.
General
Depth
6mm
Height
6mm
Length
27mm
Max Operating Temperature
70°C
Min Operating Temperature
-25°C
Max Supply Voltage (DC)
30V
Min Supply Voltage (DC)
4.75V
Mount
Flush
Operating Supply Voltage
30V
Output Type
PNP
Ratings
IP67
Size
6mm
Switching Current
100mA
Termination
Cable
Width
10mm
Compliance
RoHS
Compliant
Datasheet
Pepperl+Fuchs NBN4-F29-A2 Datasheet
Download the complete datasheet for Pepperl+Fuchs NBN4-F29-A2 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

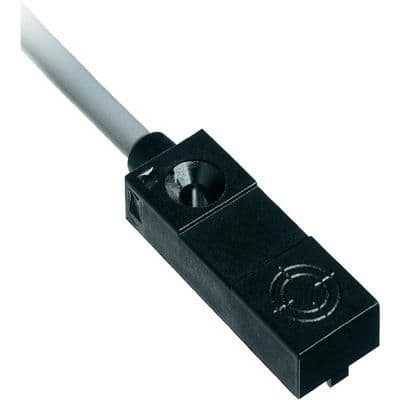

Product Images
