Technical Specifications
Pepperl+Fuchs UB1000-18GM75-E5-V15 technical specifications.
General
| Body Material | Brass |
| Contact Type | 1 maker, 1 breaker |
| Height | 85mm |
| Max Supply Voltage (DC) | 30V |
| Min Supply Voltage (DC) | 10V |
| Ratings | IP67, IP65 |
| Sensing Distance | 1000mm |
| Sensing Method | Ultrasonic |
| Shielding | Unshielded |
| Termination | Connector |
Compliance
| RoHS | Compliant |
Datasheet
Pepperl+Fuchs UB1000-18GM75-E5-V15 Datasheet
Download the complete datasheet for Pepperl+Fuchs UB1000-18GM75-E5-V15 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

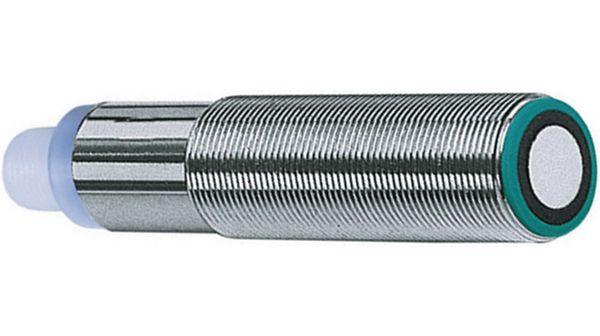

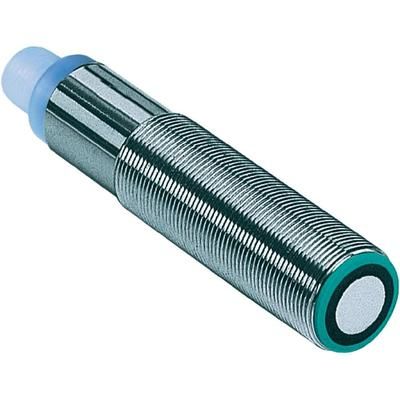

Product Images
