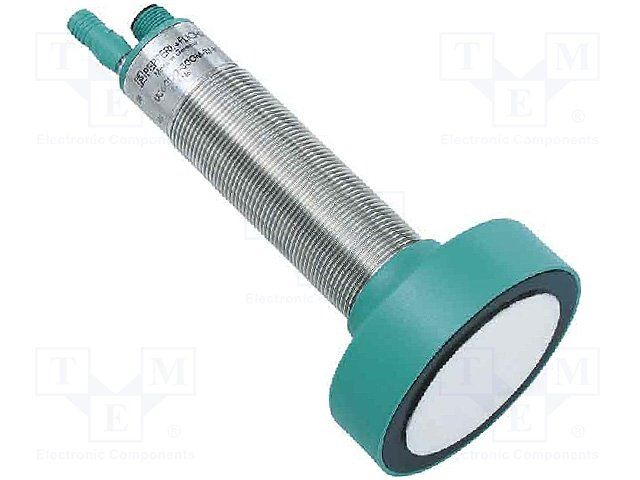

Ultrasonic sensor, UC6000-30GM-IUR2-V15, Pepperl+Fuchs
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Pepperl+Fuchs UC6000-30GM-IUR2-V15 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Pepperl+Fuchs UC6000-30GM-IUR2-V15 technical specifications.
| Frequency | 65kHz |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -25°C |
| Max Output Current | 20mA |
| Max Output Voltage | 10V |
| Min Output Voltage | 0V |
| Max Supply Voltage (DC) | 30V |
| Min Supply Voltage (DC) | 10V |
| Max Supply Voltage | 30V |
| Min Supply Voltage | 10V |
| Output Voltage | 10V |
| Outside Diameter | 73mm |
| Ratings | IP65 |
| Reach SVHC Compliant | No |
| Response Time | 35ms |
| Sensing Method | Ultrasonic |
| Series | UC6000 |
| Termination | Plug |
| RoHS | Compliant |
