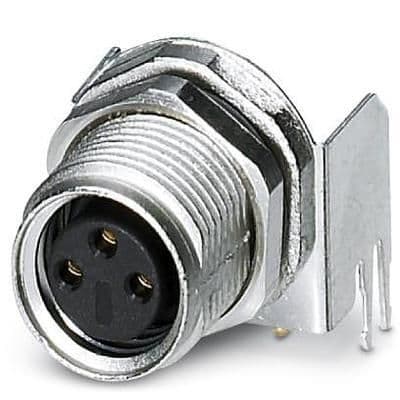

3-position sensor/actuator connector with gold-plated contacts, rated for 4A and 30V. Features through-hole, panel, and bulkhead mounting with solder termination. Operates within a -25°C to 85°C temperature range and offers IP67, waterproof, and dust-tight protection. Supplied in bulk packaging with 20 units per package.
Voltage Rating30V
Current Rating4A
MountingThrough Hole, Panel, Bulkhead
Quick Jump:
Technical Specifications
Phoenix Contact 1456145 technical specifications.
General
| Contact Plating | Gold |
| Current Rating | 4A |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -25°C |
| Mount | Through Hole, Panel, Bulkhead |
| Number of Contacts | 3 |
| Number of Positions | 3 |
| Package Quantity | 20 |
| Packaging | Bulk |
| Ratings | IP67, Waterproof, Dust Tight |
| RoHS Compliant | Yes |
| Series | PLUSCON |
| Termination | Solder |
| Voltage Rating | 30V |
Compliance
| RoHS | Compliant |
Datasheet
Phoenix Contact 1456145 Datasheet
Download the complete datasheet for Phoenix Contact 1456145 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
