Phoenix Contact
1457513
Bus system flat-type plug, 4-position, Plug, straight, D-coded, PCB mounting, THR solder connection
Voltage Rating250V
MountingThrough Hole
Quick Jump:
Technical Specifications
Phoenix Contact 1457513 technical specifications.
General
Contact Finish - Mating
GOLD
Contact Material
Copper
Flammability Rating
UL94 V-0
Max Operating Temperature
85°C
Min Operating Temperature
-25°C
Mount
Through Hole
Number of Positions
4
Packaging
Tape and Reel
Ratings
IP67, Waterproof, Dust Tight
Series
SACC
Shielding
Shielded
Termination
Solder
Voltage Rating
250V
Compliance
RoHS
Compliant
Datasheet
Phoenix Contact 1457513 Datasheet
Download the complete datasheet for Phoenix Contact 1457513 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

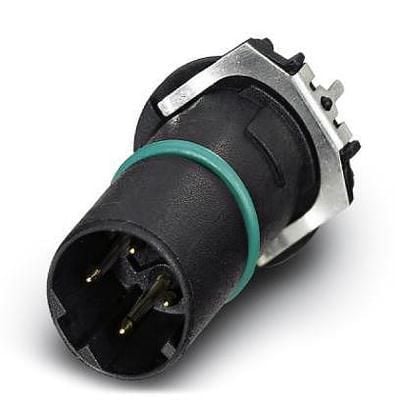

Product Images
