Sensor Connector SKT 17 POS Solder ST Panel Mount 17 Terminal 1 Port Belt
Voltage Rating30V
MountingThrough Hole
Quick Jump:
Technical Specifications
Phoenix Contact 1457717 technical specifications.
General
| Contact Finish - Mating | GOLD |
| Contact Material | Copper |
| Flammability Rating | UL94 V-0 |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -25°C |
| Mount | Through Hole |
| Number of Positions | 17 |
| Packaging | Tape and Reel |
| Ratings | IP67, Waterproof, Dust Tight |
| RoHS Compliant | Yes |
| Series | SACC |
| Termination | Solder |
| Voltage Rating | 30V |
Compliance
| RoHS | Compliant |
Datasheet
Phoenix Contact 1457717 Datasheet
Download the complete datasheet for Phoenix Contact 1457717 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

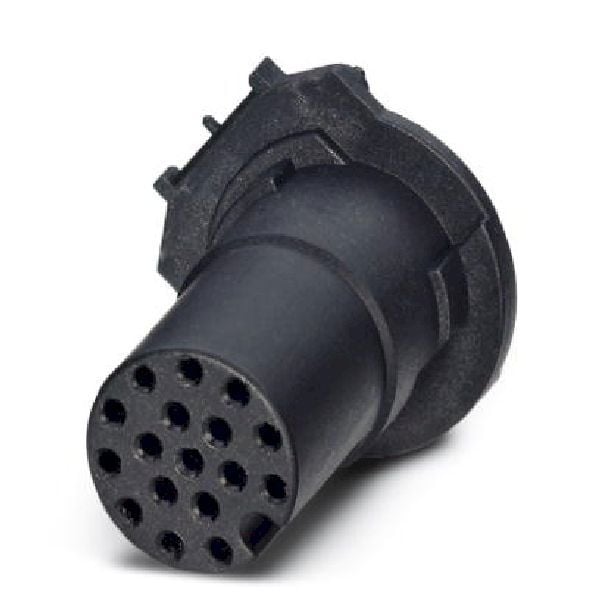

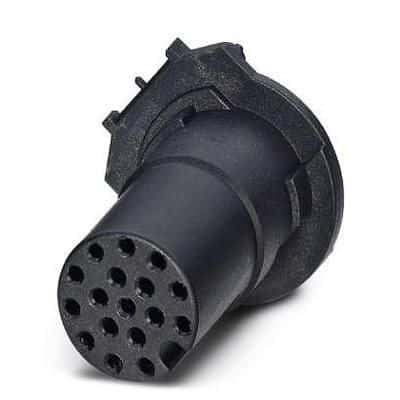

Product Images
