Phoenix Contact
1457856
Bus system flush-type plug, with red contact carrier, 4-pos., M12 SPEEDCON, shielded, A-coded, rear/screw mounting with M16 thread, with straight solder connection
Voltage Rating60V
Current Rating4A
MountingThrough Hole, Panel, Bulkhead
Quick Jump:
Technical Specifications
Phoenix Contact 1457856 technical specifications.
General
Contact Plating
Gold
Current Rating
4A
Features
Shielded
Max Operating Temperature
85°C
Min Operating Temperature
-25°C
Mount
Through Hole, Panel, Bulkhead
Number of Positions
4
Packaging
Bulk
Ratings
IP67, Waterproof, Dust Tight
RoHS Compliant
Yes
Series
SACC
Termination
Solder
Voltage Rating
60V
Compliance
RoHS
Compliant
Datasheet
Phoenix Contact 1457856 Datasheet
Download the complete datasheet for Phoenix Contact 1457856 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

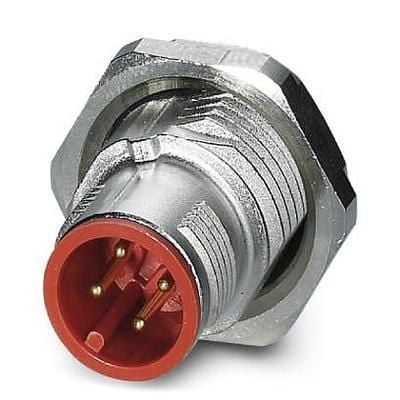

Product Images
