Universal M12 socket connector, angled for sensor applications. Features 5 positions with female brass contacts plated in copper alloy, brass, and bronze. Rated for 4A current and 60V voltage, with an operating temperature range of -40°C to 85°C. This free-hanging, right-angle component offers IP67 waterproof and dust-tight protection. Termination is via screw connection.
Voltage Rating60V
Current Rating4A
MountingFree Hanging
Quick Jump:
Technical Specifications
Phoenix Contact 1500790 technical specifications.
General
| Contact Gender | Female |
| Contact Material | Brass |
| Contact Plating | Copper Alloy, Brass, Bronze |
| Current Rating | 4A |
| Gender | Male |
| Length | 35mm |
| Max Current Rating | 4A |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Free Hanging |
| Number of Contacts | 5 |
| Number of Positions | 5 |
| Orientation | Right Angle |
| Package Quantity | 1 |
| Packaging | Bulk |
| Plating | Nickel |
| Ratings | IP67, Waterproof, Dust Tight |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | PLUSCON |
| Strain Relief | No (Without) |
| Termination | Screw |
| Voltage Rating | 60V |
| Weight | 0.598599oz |
Compliance
| RoHS | Compliant |
Datasheet
Phoenix Contact 1500790 Datasheet
Download the complete datasheet for Phoenix Contact 1500790 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

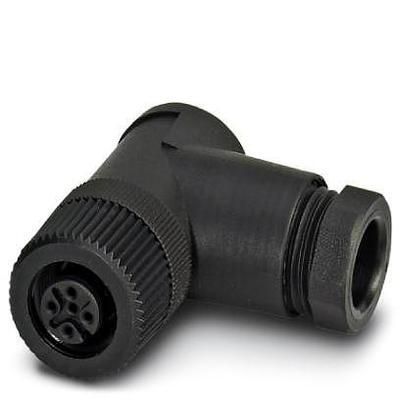

Product Images
