The PLUSCON connector features a 5-position design with a shielded construction and female contacts made from bronze with gold plating. It has a current rating of 4A and a voltage rating of 60V, with an operating temperature range of -40°C to 85°C. The connector is rated IP67, making it suitable for use in harsh environments. It is available in bulk packaging and is not RoHS compliant.
Voltage Rating60V
Current Rating4A
MountingFree Hanging
Quick Jump:
Technical Specifications
Phoenix Contact 1512571 technical specifications.
General
| Contact Gender | Female |
| Contact Material | Bronze |
| Contact Plating | Gold |
| Current Rating | 4A |
| Depth | 11mm |
| Features | Shielded |
| Length | 58mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Free Hanging |
| Number of Contacts | 5 |
| Number of Positions | 5 |
| Orientation | Straight |
| Package Quantity | 1 |
| Packaging | Bulk |
| Ratings | IP67, Waterproof, Dust Tight |
| RoHS Compliant | No |
| Series | PLUSCON |
| Strain Relief | No (Without) |
| Voltage Rating | 60V |
| Weight | 1.836362oz |
Compliance
| RoHS | Not Compliant |
Datasheet
Phoenix Contact 1512571 Datasheet
Download the complete datasheet for Phoenix Contact 1512571 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

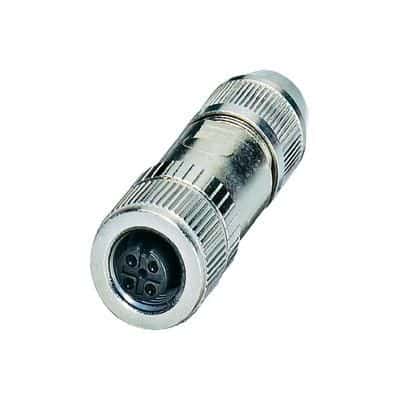

Product Images
