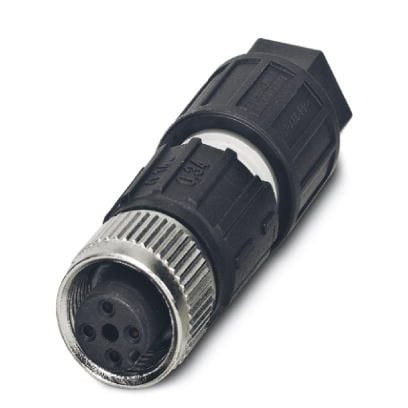

Universal M12 sensor/actuator connector, featuring a straight, female socket with A-coding and four positions. This sealed connector utilizes insulation displacement connection (IDC) for termination, accommodating external cable diameters from 3.5 mm to 6 mm. Constructed with a zinc die-cast, nickel-plated knurl and bronze contacts with gold plating, it offers a 4A current rating and a 125V AC voltage rating. Rated IP65, it is waterproof, water-resistant, and dust-tight, operating within a temperature range of -25°C to 80°C.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Phoenix Contact 1641688 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | Metal |
| Contact Gender | Female |
| Contact Material | Bronze |
| Contact Plating | Gold |
| Current Rating | 4A |
| Depth | 4mm |
| Gender | Male |
| Lead Free | Lead Free |
| Length | 50mm |
| Max Current Rating | 4A |
| Max Operating Temperature | 80°C |
| Min Operating Temperature | -25°C |
| Max Voltage Rating (AC) | 125V |
| Mount | Free Hanging, Cable |
| Number of Contacts | 4 |
| Number of Ports | 1 |
| Number of Positions | 4 |
| Orientation | Straight |
| Package Quantity | 1 |
| Packaging | Bulk |
| Plating | Nickel, ZINC DIE CAST |
| Primary Type | Sealed |
| Radiation Hardening | No |
| Ratings | IP65, Waterproof, Water Resistant, Dust Tight |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | PLUSCON |
| Shell Plating | Nickel |
| Strain Relief | No (Without) |
| Termination | IDC |
| Voltage Rating | 125V |
| Weight | 0.428931oz |
| RoHS | Compliant |
