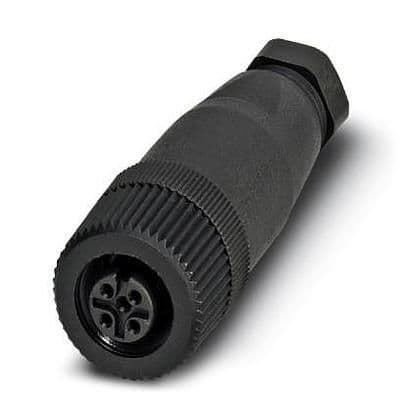

Universal 4-position female connector for sensors, featuring brass contacts with gold plating and a 4A current rating at 250V. This straight, free-hanging, cable-mount component offers IP67, waterproof, and dust-tight ratings, operating between -40°C and 85°C. It is RoHS compliant and lead-free, with screw termination and a length of 54mm.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Phoenix Contact 1681114 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Approvals | UL, EAC, IEC |
| Contact Gender | Female |
| Contact Material | Brass, CuZn |
| Contact Plating | Brass, Copper Alloy, Gold |
| Current Rating | 4A |
| Gender | Female |
| Lead Free | Lead Free |
| Length | 54mm |
| Max Current Rating | 4A |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Free Hanging, Cable |
| Number of Contacts | 4 |
| Number of Ports | 1 |
| Number of Positions | 4 |
| Orientation | Straight |
| Package Quantity | 1 |
| Packaging | Bulk |
| Plating | Plastic |
| Ratings | IP67, Waterproof, Dust Tight |
| RoHS Compliant | Yes |
| Series | SACC |
| Strain Relief | No (Without) |
| Termination | Screw |
| Voltage Rating | 250V |
| Weight | 0.504418oz |
| RoHS | Compliant |
