4-position straight M12 socket connector for free-hanging mounting. Features female contacts made of brass with copper alloy plating, rated for 4A and 250V. Operates within a temperature range of -40°C to 85°C and offers IP67 waterproof and dust-tight protection. Termination is via screw connection, supporting wire/cable diameters up to 8mm. RoHS compliant and lead-free.
Voltage Rating250V
Current Rating4A
MountingFree Hanging
Quick Jump:
Technical Specifications
Phoenix Contact 1696439 technical specifications.
General
| Contact Gender | Female |
| Contact Material | Brass |
| Contact Plating | Copper Alloy |
| Current Rating | 4A |
| Lead Free | Lead Free |
| Length | 54mm |
| Max Current Rating | 4A |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Free Hanging |
| Number of Contacts | 4 |
| Number of Positions | 4 |
| Orientation | Straight |
| Package Quantity | 1 |
| Packaging | Bulk |
| Ratings | IP67, Waterproof, Dust Tight |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | PLUSCON |
| Strain Relief | No (Without) |
| Termination | Screw |
| Voltage Rating | 250V |
| Weight | 0.889962oz |
| Wire/Cable Diameter | 8mm |
Compliance
| RoHS | Compliant |
Datasheet
Phoenix Contact 1696439 Datasheet
Download the complete datasheet for Phoenix Contact 1696439 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

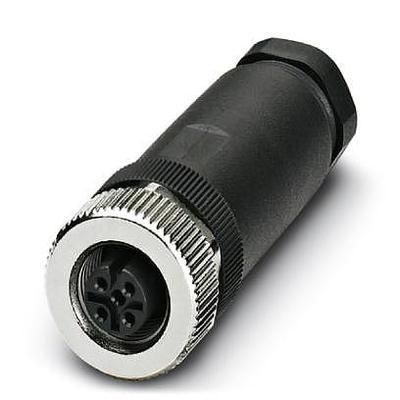

Product Images
