Phoenix Contact
2281199
VARIOFACE module, with screw connection and D-Subminiature socket strip, for mounting on NS 35/7.5 or NS32, 15-pos.
PackageModule
Voltage Rating125V
Current Rating2.5A
MountingDIN Rail
Quick Jump:
Technical Specifications
Phoenix Contact 2281199 technical specifications.
General
Approvals
cULus
Package/Case
Module
Color
Green
Contact Current Rating
2.5A
Current Rating
2.5A
Height
58.5mm
Lead Free
Lead Free
Length
1.77inch
Max Operating Temperature
50°C
Min Operating Temperature
-20°C
Mount
DIN Rail
Number of Positions
15
Orientation
Straight
Packaging
Bulk
RoHS Compliant
Yes
Series
VARIOFACE, FLKM
Termination
Screw
Voltage Rating
125V
Weight
3oz
Width
2.3inch
Wire Gauge (Max)
24AWG
Wire Gauge (Min)
12AWG
Compliance
RoHS
Compliant
Datasheet
Phoenix Contact 2281199 Datasheet
Download the complete datasheet for Phoenix Contact 2281199 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

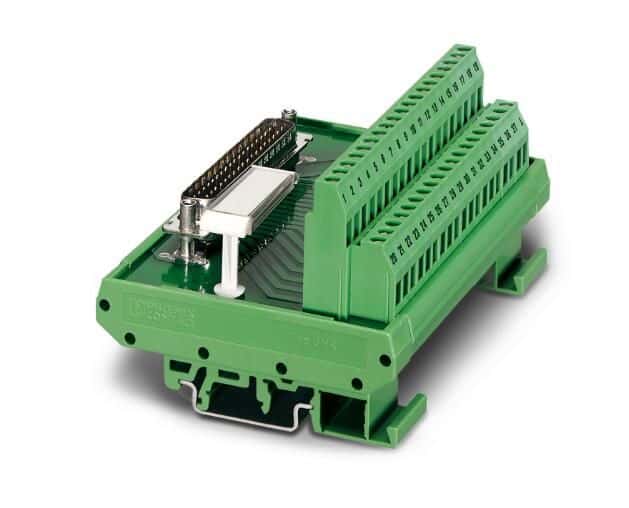

Product Images
