Phoenix Contact
2322388

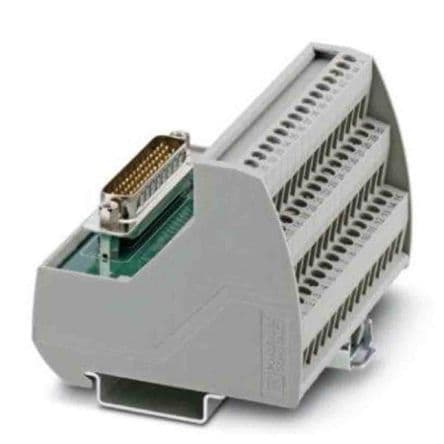

VARIOFACE module, with screw connection and high density D-SUB miniature pin strip, for mounting on NS 35rails, no. of pos.: 44, width: 135 mm
PackageModule
Voltage Rating125V
Current Rating1A
Quick Jump:
Technical Specifications
Phoenix Contact 2322388 technical specifications.
General
| Package/Case | Module |
| Color | Green |
| Contact Current Rating | 1A |
| Current Rating | 1A |
| Height | 62mm |
| Lead Free | Lead Free |
| Length | 3.26inch |
| Max Operating Temperature | 50°C |
| Min Operating Temperature | -20°C |
| Number of Contacts | 44 |
| Number of Positions | 44 |
| Package Quantity | 1 |
| Series | VARIOFACE, VIP |
| Termination | Screw |
| Voltage Rating | 125V |
| Width | 2.44inch |
| Wire Gauge (Max) | 24AWG |
| Wire Gauge (Min) | 12AWG |
Compliance
| RoHS | Compliant |
