Phoenix Contact
3006506

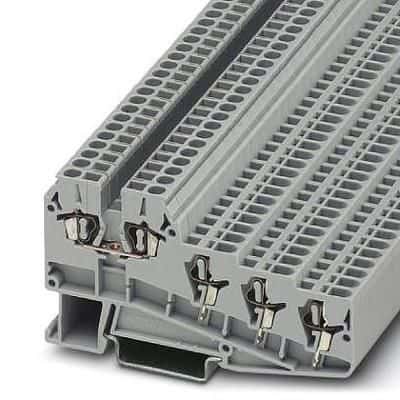

Sensor/actuator terminal block, connection method: Spring-cage connection, cross section: 0.14 mm2 - 2.5 mm2,AWG: 26 - 12, width: 5.2 mm, color: gray, mounting type: NS 35/7,5, NS 35/15
Voltage300V
Current15A
Voltage Rating250V
Current Rating17.5A
Quick Jump:
Technical Specifications
Phoenix Contact 3006506 technical specifications.
General
Color
Grey
Current
15A
Current Rating
17.5A
Flammability Rating
UL94 V-0
Insulation Material
Nylon
Length
90mm
Mount
Through Hole
Number of Levels
2
Number of Positions
5
Package Quantity
50
RoHS Compliant
Yes
Series
CLIPLINE ZVIOK
Terminal Width
5.2mm
Voltage
300V
Voltage Rating
250V
Weight
2.094lb
Width
5.2mm
Wire Gauge (Max)
26AWG
Wire Gauge (Min)
14AWG
Wire/Cable Gauge
12AWG
Compliance
RoHS
Compliant
Datasheet
Phoenix Contact 3006506 Datasheet
Download the complete datasheet for Phoenix Contact 3006506 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
