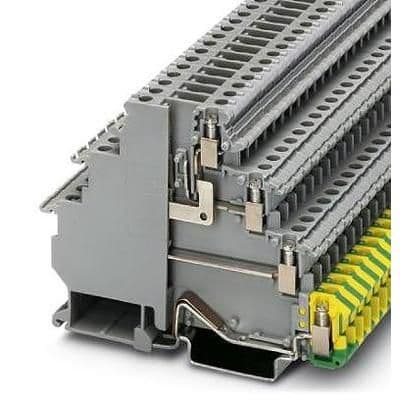

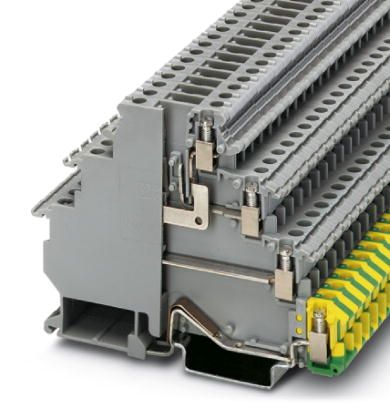

7-position sensor/actuator terminal block for DIN rail mounting, featuring screw termination and a 24A maximum current rating. This grey, UL94 V-2 rated component offers 7 poles and 4 rows, accommodating wire gauges from 14AWG to 30AWG. Rated for 300V, it is RoHS compliant and includes CSA, cULus, UL, and EAC approvals.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Phoenix Contact 3011067 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Approvals | CSA, cULus, UL, EAC |
| Package/Case | 300 |
| Color | Grey |
| Current | 15A |
| Current Rating | 15A |
| Flammability Rating | UL94 V-2 |
| Height | 77.5mm |
| Housing Color | Grey |
| Insulation Material | Nylon |
| Lead Free | Lead Free |
| Length | 91.5mm |
| Max Current Rating | 24A |
| Number of Circuits | 1 |
| Number of Contacts | 7 |
| Number of Poles | 7 |
| Number of Positions | 9 |
| Number of Rows | 4 |
| Package Quantity | 1 |
| RoHS Compliant | Yes |
| Series | CLIPLINE VIOK |
| Terminal Width | 6.2mm |
| Termination | Screw |
| Voltage | 300V |
| Voltage Rating | 250V |
| Weight | 1.323lb |
| Width | 6.2mm |
| Wire Gauge (Max) | 30AWG |
| Wire Gauge (Min) | 14AWG |
| RoHS | Compliant |
