Industrial power relay featuring a 2 PDT contact configuration with a 5A current rating and 250VAC voltage rating. This non-latching relay operates with a 120VAC coil voltage and a 4mA coil current. Designed for DIN rail mounting, it offers screw termination and a general-purpose relay type. The module package measures 77mm in height, 22.5mm in width, and 77mm in depth, with an operating temperature range of -20°C to 65°C.
PackageModule
Current Rating5A
MountingDIN Rail
Quick Jump:
Technical Specifications
Phoenix Contact 5520721 technical specifications.
General
| Package/Case | Module |
| Coil Current | 4mA |
| Coil Type | Non-Latching |
| Coil Voltage (AC) | 120V |
| Contact Current Rating | 5A |
| Contact Type | 2 PDT |
| Current Rating | 5A |
| Depth | 77mm |
| Height | 77mm |
| Lead Free | Lead Free |
| Length | 22mm |
| Max Current Rating | 5A |
| Max Operating Temperature | 65°C |
| Min Operating Temperature | -20°C |
| Max Voltage Rating (AC) | 250V |
| Mount | DIN Rail |
| Package Quantity | 1 |
| Packaging | Bulk |
| Relay Type | General Purpose |
| Termination | Screw |
| Throw Configuration | DPDT |
| Voltage Rating (AC) | 250V |
| Weight | 2.40004oz |
| Width | 22.5mm |
Compliance
| RoHS | Compliant |
Datasheet
Phoenix Contact 5520721 Datasheet
Download the complete datasheet for Phoenix Contact 5520721 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

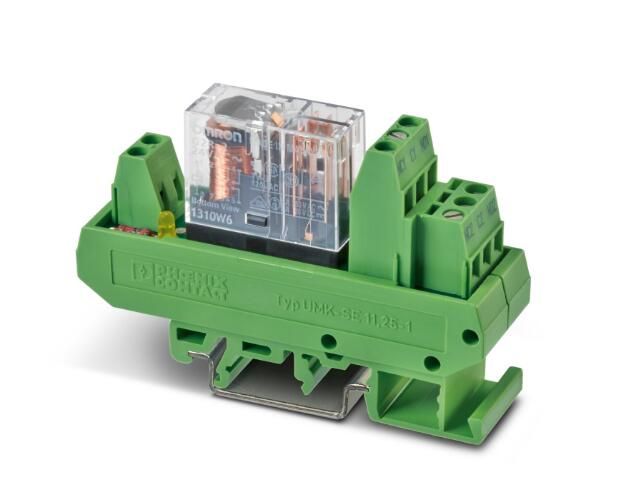

Product Images
