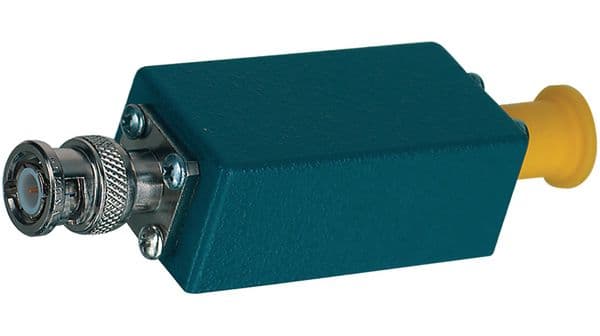

General purpose aluminium enclosure, Size A series, featuring a straight BNC male to female feedthrough. Constructed from durable aluminium and metal, this shielded module offers a blue housing color. Operating temperature range spans from -55°C to 150°C, with contact materials of copper and brass. Dimensions include a length of 97.03mm and a depth of 28.7mm. This RoHS compliant component is supplied in bulk packaging.
PackageModule
Quick Jump:
Technical Specifications
Pomona Electronics 2391 technical specifications.
General
| Package/Case | Module |
| Color | Blue |
| Contact Material | Copper, Brass |
| Depth | 28.7mm |
| Features | Shielded |
| Housing Color | Blue |
| Lead Free | Lead Free |
| Length | 97.03mm |
| Material | Aluminium, Metal |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Orientation | Straight |
| Package Quantity | 2 |
| Packaging | Bulk |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | Size A |
Compliance
| RoHS | Compliant |
Datasheet
Pomona Electronics 2391 Datasheet
Download the complete datasheet for Pomona Electronics 2391 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
