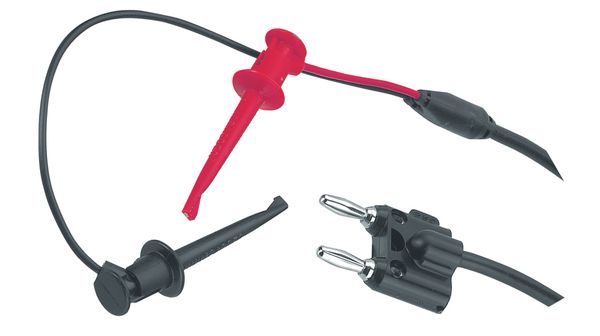

High-quality test lead featuring a 36-inch (914mm) coaxial cable with 20AWG wire gauge. Connects via a banana plug to a mini hook and plug assembly. Constructed with brass body and contacts, nickel plating, and PVC insulation, this lead is rated for 300V and 5A maximum current. Available in black and red, with gold finish and lead-free composition.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Pomona Electronics 3786-C-36 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Pomona Electronics 3786-C-36 technical specifications.
| Body Material | Brass |
| Package/Case | 300 |
| Color | Black, Red |
| Connector Type A | Plug, Clip |
| Connector Type B | Mini Hook, Plug |
| Contact Material | Brass, Copper |
| Contact Plating | Nickel |
| Current Rating | 5A |
| Finish | Gold |
| Insulation Material | PVC |
| Lead Free | Lead Free |
| Lead Length | 914mm |
| Length | 36inch |
| Max Current Rating | 5A |
| Max Voltage Rating (DC) | 300.3kV |
| Mount | Cable |
| Package Quantity | 6 |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | Minigrabber® 3786 |
| Voltage Rating | 300V |
| DC Rated Voltage | 300V |
| Wire/Cable Gauge | 20AWG |
| Wire/Cable Type | Coaxial |
| RoHS | Compliant |
