Oscilloscope and multimeter test lead featuring a BNC plug (male) to hook clip connection. Constructed with brass body and copper/brass contacts plated with nickel and gold for reliable conductivity. Insulated with PVC, this lead offers a 60V DC rating and a 30V AC rating, with a maximum voltage rating of 6.03kV DC. The lead length is 140mm, with an overall length of 178mm, and a wire gauge of 20AWG.
Voltage Rating300V
MountingSocket
Quick Jump:
Technical Specifications
Pomona Electronics 3789 technical specifications.
General
| Body Material | Brass |
| Color | Black, Red |
| Connector Type A | BNC, Plug |
| Connector Type B | Clip |
| Contact Material | Copper, Brass |
| Contact Plating | Nickel, Gold |
| Gender Type A | Male |
| Insulation Material | PVC |
| Lead Free | Lead Free |
| Lead Length | 140mm |
| Length | 178mm |
| Material | Brass, Gold |
| Max Operating Temperature | 55°C |
| Min Operating Temperature | 131°C |
| Max Voltage Rating (DC) | 6.03kV |
| Mount | Socket |
| Package Quantity | 5 |
| Packaging | Bag |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | Minigrabber® 3789 |
| Voltage Rating | 300V |
| Voltage Rating (AC) | 30V |
| DC Rated Voltage | 60V |
| Wire/Cable Diameter | 0.06inch |
| Wire/Cable Gauge | 20AWG |
Compliance
| RoHS | Compliant |
Datasheet
Pomona Electronics 3789 Datasheet
Download the complete datasheet for Pomona Electronics 3789 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

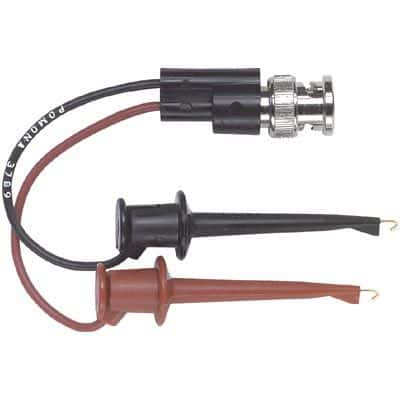

Product Images
