Technical Specifications
Pomona Electronics 5187-C-48 technical specifications.
General
Body Material
Brass
Color
Black, Red
Connector Type A
BNC, Plug
Connector Type B
Mini Hook, Clip
Contact Material
Copper
Insulation Material
PVC
Lead Free
Lead Free
Lead Length
1.22m
Length
48inch
Max Operating Temperature
50°C
Min Operating Temperature
122°C
Max Voltage Rating (AC)
300V
Mount
Cable
Package Quantity
5
RoHS Compliant
Yes
Series
Minigrabber® 5187
Stranding
41 x 36
Voltage Rating
300V
Voltage Rating (AC)
300V
DC Rated Voltage
300V
Wire/Cable Diameter
0.195inch
Wire/Cable Gauge
20AWG
Compliance
RoHS
Compliant
Datasheet
Pomona Electronics 5187-C-48 Datasheet
Download the complete datasheet for Pomona Electronics 5187-C-48 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

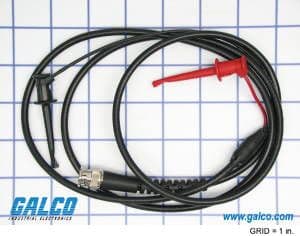

Product Images
