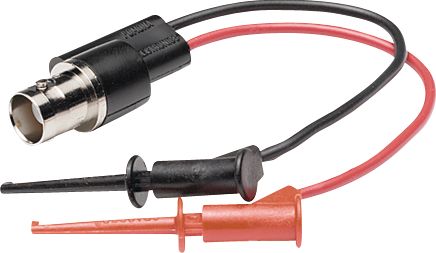

Oscilloscope and multimeter test lead featuring a BNC female connector to dual hook clips. Constructed with brass body and copper contacts with gold plating for reliable conductivity. Insulated with PVC, this lead offers a 150V voltage rating and a 60V DC rated voltage, with a maximum operating temperature of 55°C. The 20AWG PVC wire extends 137mm, providing a 6.03kV DC maximum voltage rating.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Pomona Electronics 5188 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Body Material | Brass |
| Color | Black, Red |
| Connector Type A | BNC |
| Connector Type B | Clip |
| Contact Material | Copper |
| Contact Plating | Gold |
| Gender Type A | Female |
| Insulation Material | PVC |
| Lead Free | Lead Free |
| Lead Length | 137mm |
| Material | Copper, Brass, Gold |
| Max Operating Temperature | 55°C |
| Min Operating Temperature | 131°C |
| Max Voltage Rating (DC) | 6.03kV |
| Mount | Cable |
| Packaging | Bulk |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | Micrograbber® 5188 |
| Voltage Rating | 150V |
| Voltage Rating (AC) | 30V |
| DC Rated Voltage | 60V |
| Wire/Cable Diameter | 0.34inch |
| Wire/Cable Gauge | 20AWG |
| Wire/Cable Type | PVC |
| RoHS | Compliant |
