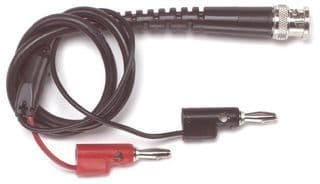

RF Cable Assembly featuring BNC male plug to banana plug connectors. This 48-inch (1.219m) coaxial cable assembly boasts 50 Ohm impedance and 20AWG wire gauge. Constructed with brass body material and copper/gold contact material, it utilizes PVC insulation and is UL approved and RoHS compliant. Rated for 60V DC, it operates within a temperature range of 122°C to 50°C.
MountingCable
Quick Jump:
Technical Specifications
Pomona Electronics 5268-C-48 technical specifications.
General
| Approvals | UL |
| Body Material | Brass |
| Color | Black, Red |
| Connector Type A | BNC, Plug |
| Connector Type B | Plug |
| Contact Material | Copper, Gold |
| Gender Type A | Male |
| Gender Type B | Male |
| Impedance | 50R |
| Insulation Material | PVC |
| Lead Free | Lead Free |
| Lead Length | 1.219m |
| Length | 48inch |
| Max Operating Temperature | 50°C |
| Min Operating Temperature | 122°C |
| Mount | Cable |
| Package Quantity | 2 |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | 5268 |
| DC Rated Voltage | 60V |
| Wire/Cable Gauge | 20AWG |
| Wire/Cable Type | Coaxial |
Compliance
| RoHS | Compliant |
Datasheet
Pomona Electronics 5268-C-48 Datasheet
Download the complete datasheet for Pomona Electronics 5268-C-48 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
Product Images
