Pomona Electronics
5898

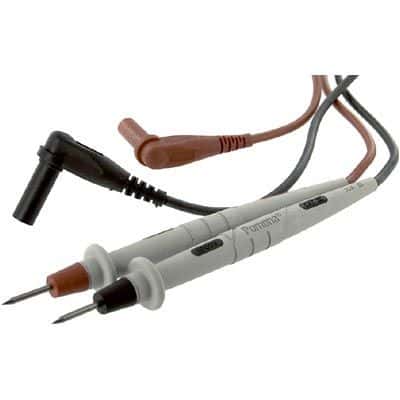

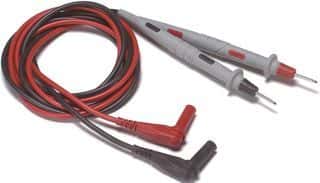

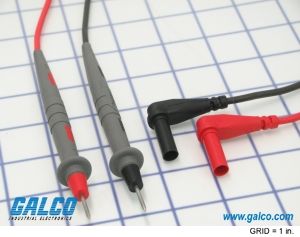

POMONA 5898 Test Lead Set, Test Tip Probe, 4mm Right Angle Banana Plug, Shrouded, 1 kV, 10 A, Black, Red
Voltage Rating1kV
Current Rating10A
MountingCable
Quick Jump:
Technical Specifications
Pomona Electronics 5898 technical specifications.
General
| Color | Black |
| Connector Type A | Plug |
| Connector Type B | Plug |
| Contact Material | Stainless Steel |
| Current Rating | 10A |
| Insulation Color | Black |
| Insulation Material | Silicone |
| Lead Free | Lead Free |
| Lead Length | 1.22m |
| Length | 48inch |
| Max Current Rating | 10A |
| Mount | Cable |
| Package Quantity | 5 |
| Packaging | Bulk |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | 5898 |
| Voltage Rating | 1kV |
| DC Rated Voltage | 1kV |
| Wire/Cable Gauge | 18AWG |
Compliance
| RoHS | Compliant |
Datasheet
Pomona Electronics 5898 Datasheet
Download the complete datasheet for Pomona Electronics 5898 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
Product Images
