Oscilloscope and multimeter test leads featuring a mini hook connector and a plug connector. Constructed with copper contacts and gold plating for optimal conductivity, these leads boast a 5A current rating and a 300V operating supply voltage. The silicone insulation and high-temperature resistance ensure durability, while the 18AWG wire gauge and 914.4mm (36-inch) lead length provide ample reach. These RoHS compliant leads are designed for demanding test and measurement applications.
Voltage Rating60V
Current Rating5A
MountingCable
Quick Jump:
Technical Specifications
Pomona Electronics 6249-36-0 technical specifications.
General
Color
Black
Connector Type A
Plug
Connector Type B
Mini Hook
Contact Material
Copper
Contact Plating
Gold
Current Rating
5A
Features
High Temperature
Finish
Gold
Insulation Material
Silicone
Lead Free
Lead Free
Lead Length
914.4mm
Length
36inch
Mount
Cable
Operating Supply Voltage
300V
Package Quantity
5
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
Minigrabber® 6249
Stranding
65 x 36
Voltage Rating
60V
Voltage Rating (AC)
30V
DC Rated Voltage
60V
Wire/Cable Gauge
18AWG
Compliance
RoHS
Compliant
Datasheet
Pomona Electronics 6249-36-0 Datasheet
Download the complete datasheet for Pomona Electronics 6249-36-0 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

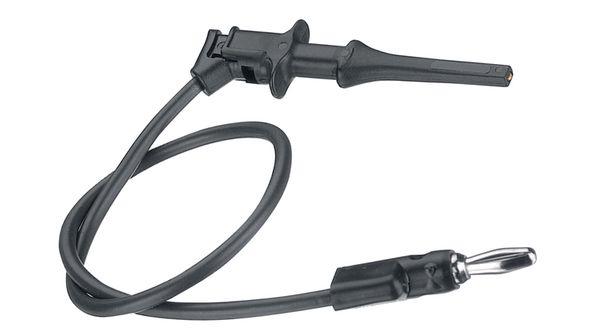

Product Images
