POMONA ELECTRONICS

B-36-6

Datasheet

36" Test Leads, 15A, 5kV, PVC, Nickel Plated Copper

Pomona Electronics

B-36-6

Name: B-36-6 Pomona Electronics
Brand: Pomona Electronics
SKU: B-36-6

36" Test Leads, 15A, 5kV, PVC, Nickel Plated Copper

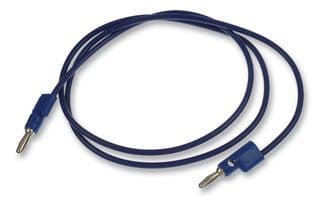

Blue test leads featuring 18AWG PVC wire construction and a 36-inch lead length. Designed for oscilloscope and multimeter applications, these leads utilize brass body material and copper contacts with nickel plating. Rated for a maximum operating temperature of 55°C, they support a 15A current rating and a 6.03kV DC voltage rating, with an AC voltage rating of 30V and DC rated voltage of 60V.

Voltage Rating5kV

Current Rating15A

MountingCable

Quick Jump:

Technical Specifications

Pomona Electronics B-36-6 technical specifications.

General

Body Material	Brass
Color	Blue
Connector Type A	Plug
Connector Type B	Plug
Contact Material	Copper
Contact Plating	Nickel
Current Rating	15A
Insulation Color	Blue
Insulation Material	Polypropylene
Lead Free	Lead Free
Lead Length	36inch
Length	36inch
Max Current Rating	15A
Max Operating Temperature	55°C
Max Voltage Rating (DC)	6.03kV
Mount	Cable
Package Quantity	5
Packaging	Bulk
Reach SVHC Compliant	No
RoHS Compliant	Yes
Series	B
Voltage Rating	5kV
Voltage Rating (AC)	30V
DC Rated Voltage	60V
Wire/Cable Gauge	18AWG
Wire/Cable Type	PVC
